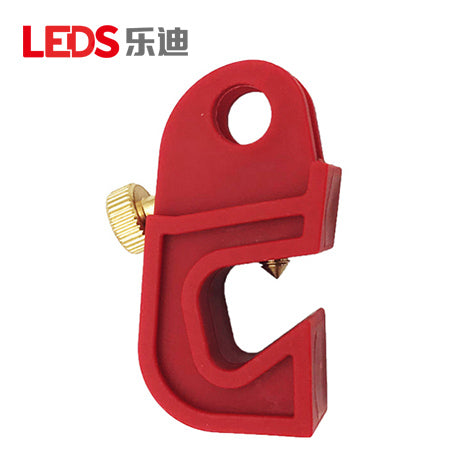

LDC24 - Tool-Free Molded-Case Circuit Breaker Lockout

The LEDS LDC24 is a tool-free lockout for miniature circuit breakers and small-to-medium molded-case circuit breakers with handles thinner than 10 mm. Its compact reinforced PA nylon body and integrated copper thumb screw clamp directly onto the breaker handle without requiring an existing handle hole or panel modification. The thumb screw can be tightened by hand, after which a safety padlock is installed through the lockout. This design is suited to electrical isolation, inspection, and maintenance procedures where quick installation is required.

Specifications

Model : LDC24

Type : Tool-Free Molded-Case Circuit Breaker Lockout

Application : Miniature Circuit Breakers and Small-to-Medium Molded-Case Circuit Breakers

Breaker Locking Type : Single-Pole (1P)

Maximum Breaker Handle Thickness : Less Than 10 mm

Lock Body Material : Reinforced PA Nylon

Locking Screw : Integrated Copper Thumb Screw

Lock Body Dimensions : 55 x 25 x 20 mm (H x W x D)

Lock Hole Diameter : 10 mm

Maximum Padlock Shackle Diameter : 8 mm

Color : Red

Installation : Tool-Free Thumb-Screw Installation

⚠️ This product requires a lead time of 2-5 weeks before shipment.
