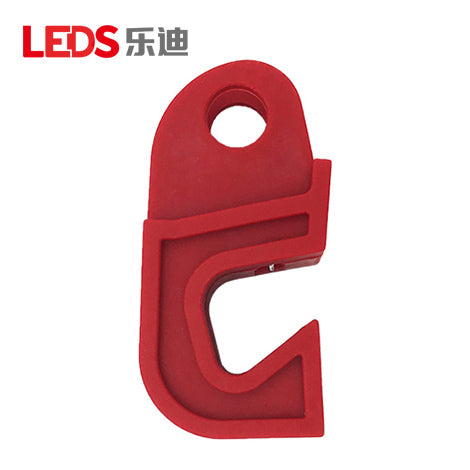

LDC23 - Screwdriver-Operated Molded-Case Circuit Breaker Lockout

The LEDS LDC23 is a screwdriver-operated lockout for miniature circuit breakers and small-to-medium molded-case circuit breakers with handles thinner than 10 mm. The compact reinforced PA nylon body clamps directly onto the breaker handle, so no modification or pre-existing hole in the handle is required. A small flat-head screwdriver is used to tighten the locking screw. After installation, a safety padlock can be inserted through the lockout to help keep the breaker secured in the isolated position during servicing or maintenance.

Specifications

Model : LDC23

Type : Screwdriver-Operated Molded-Case Circuit Breaker Lockout

Application : Miniature Circuit Breakers and Small-to-Medium Molded-Case Circuit Breakers

Breaker Locking Type : Single-Pole (1P)

Maximum Breaker Handle Thickness : Less Than 10 mm

Lock Body Material : Reinforced PA Nylon

Lock Body Dimensions : 55 x 25 x 20 mm (H x W x D)

Lock Hole Diameter : 10 mm

Maximum Padlock Shackle Diameter : 8 mm

Color : Red

Installation : Small Flat-Head Screwdriver Required

⚠️ This product requires a lead time of 2-5 weeks before shipment.
