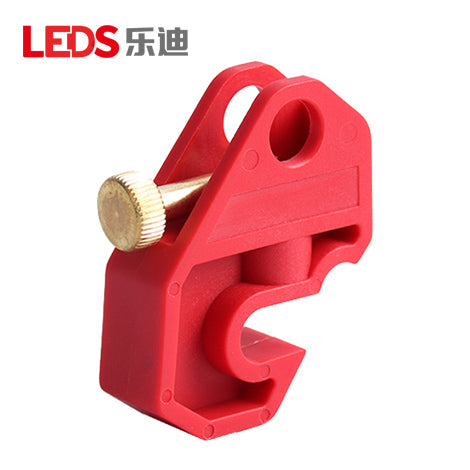

LDC22 - Tool-Free Small/Medium Circuit Breaker Lockout

The LEDS LDC22 is a tool-free circuit breaker lockout for miniature circuit breakers and small-to-medium molded-case circuit breakers with handles thinner than 8 mm. It uses a reinforced PA nylon body and an integrated copper thumb screw that clamps directly onto the breaker handle without requiring an existing handle hole. Once tightened by hand, the lockout can be secured with a safety padlock. The compact design supports single-pole and multi-pole breaker applications and is suited to routine Lockout/Tagout (LOTO), electrical isolation, inspection, and maintenance work.

Specifications

Model : LDC22

Type : Tool-Free Small/Medium Circuit Breaker Lockout

Application : Miniature Circuit Breakers and Small-to-Medium Molded-Case Circuit Breakers

Breaker Locking Type : Single-Pole / Multi-Pole (1P/nP)

Maximum Breaker Handle Thickness : Less Than 8 mm

Lock Body Material : Reinforced PA Nylon

Locking Screw : Integrated Copper Thumb Screw

Lock Body Dimensions : 45 x 25 x 10 mm (H x W x D)

Lock Hole Diameter : 10 mm

Maximum Padlock Shackle Diameter : 8 mm

Color : Red

Installation : Tool-Free Thumb-Screw Installation

⚠️ This product requires a lead time of 2-5 weeks before shipment.
