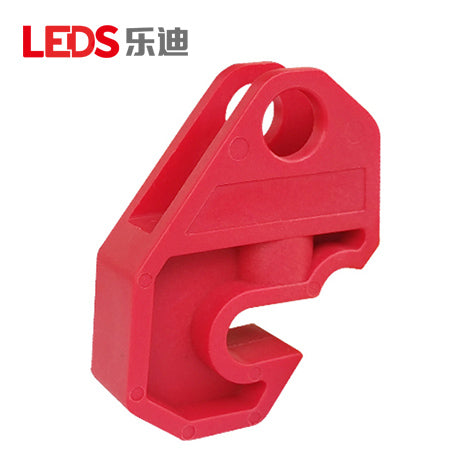

LDC21 - Screwdriver-Operated Small/Medium Circuit Breaker Lockout

The LEDS LDC21 is a compact circuit breaker lockout for miniature circuit breakers and small-to-medium molded-case circuit breakers with handles thinner than 8 mm. Its reinforced PA nylon body clamps directly onto the breaker handle and does not require the handle to have an existing hole. The slotted locking screw is tightened with a small flat-head screwdriver, after which a safety padlock can be inserted to help prevent the lockout from being removed. The device supports single-pole and multi-pole breaker applications and is suitable for electrical isolation and maintenance procedures.

Specifications

Model : LDC21

Type : Screwdriver-Operated Small/Medium Circuit Breaker Lockout

Application : Miniature Circuit Breakers and Small-to-Medium Molded-Case Circuit Breakers

Breaker Locking Type : Single-Pole / Multi-Pole

Maximum Breaker Handle Thickness : Less Than 8 mm

Lock Body Material : Reinforced PA Nylon

Lock Body Dimensions : 45 x 25 x 10 mm (H x W x D)

Lock Hole Diameter : 10 mm

Maximum Padlock Shackle Diameter : 8 mm

Color : Red

Installation : Small Flat-Head Screwdriver Required

⚠️ This product requires a lead time of 2-5 weeks before shipment.
