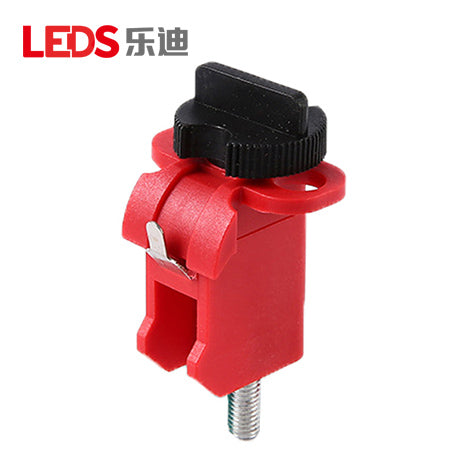

LDC14 - Tie-Bar Miniature Circuit Breaker Lockout

The LEDS LDC14 is a tie-bar miniature circuit breaker lockout designed primarily for multi-pole miniature circuit breakers. Unlike pin-type models, it does not require holes in the breaker handle. A small metal tab is positioned beneath the breaker tie bar, and the integrated thumbwheel is tightened to secure the device without installation tools. This makes the LDC14 suitable for multi-pole breakers and other compatible breakers with a connected operating bar. Its glass-fiber-reinforced PA nylon body accepts a safety padlock with a shackle diameter of up to 7 mm.

Specifications

Model : LDC14

Type : Tie-Bar Miniature Circuit Breaker Lockout

Application : Multi-Pole Miniature Circuit Breakers with a Tie Bar

Breaker-Hole Requirement : Not Required

Locking Method : Metal Tab and Integrated Thumbwheel

Lock Body Material : Glass-Fiber-Reinforced PA Nylon

Lock Body Dimensions : 55 x 32 x 24 mm (H x W x D)

Color : Red and Black

Maximum Padlock Shackle Diameter : 7 mm

Installation : Tool-Free Thumbwheel Installation

⚠️ This product requires a lead time of 2-5 weeks before shipment.
