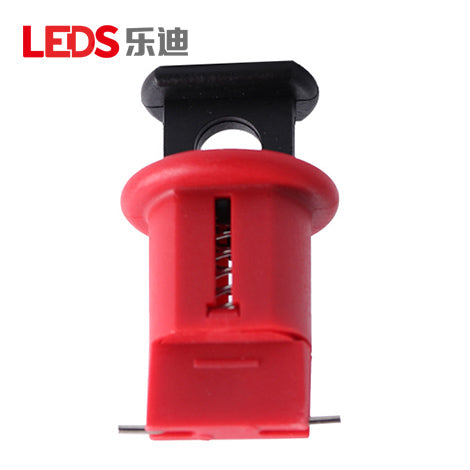

LDC13 - POW Wide-Pin Miniature Circuit Breaker Lockout

The LEDS LDC13 is a pin-out wide (POW) miniature circuit breaker lockout designed for single-pole and multi-pole miniature circuit breakers with wider-spaced side holes. Its outward-facing wide-pin configuration accommodates breaker-hole spacing of up to 20 mm. The compact push-button design installs without tools, allowing the breaker to be secured for electrical isolation, inspection, and maintenance procedures. The lock body is made from glass-fiber-reinforced PA nylon and accepts a safety padlock with a shackle diameter of up to 7 mm.

Specifications

Model : LDC13

Type : Pin-Out Wide (POW) Miniature Circuit Breaker Lockout

Application : Single-Pole and Multi-Pole Miniature Circuit Breakers

Breaker Requirement : Two Side Holes

Pin Configuration : Outward-Facing Pins, Wide Type

Maximum Breaker-Hole Spacing : 20 mm

Lock Body Material : Glass-Fiber-Reinforced PA Nylon

Lock Body Dimensions : 43 x 24 x 18 mm (H x W x D)

Color : Red and Black

Maximum Padlock Shackle Diameter : 7 mm

Installation : Tool-Free Push-Button Installation

⚠️ This product requires a lead time of 2-5 weeks before shipment.
