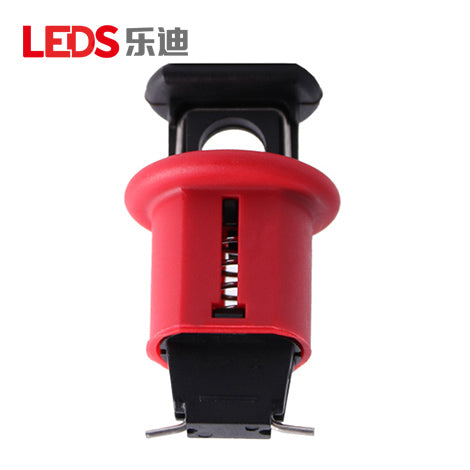

LDC12 - POS Miniature Circuit Breaker Lockout

The LEDS LDC12 is a pin-out standard (POS) miniature circuit breaker lockout for single-pole and multi-pole miniature circuit breakers with two side holes. Its outward-facing pins are designed for breaker-hole spacing of up to 11 mm, based on the October 2024 LEDS catalog. The push-button mechanism allows fast, tool-free installation and helps keep the breaker secured during electrical isolation and maintenance. The lock body is constructed from glass-fiber-reinforced PA nylon. A safety padlock with a shackle diameter of up to 7 mm can be fitted after the lockout is correctly installed.

Specifications

Model : LDC12

Type : Pin-Out Standard (POS) Miniature Circuit Breaker Lockout

Application : Single-Pole and Multi-Pole Miniature Circuit Breakers

Breaker Requirement : Two Side Holes

Pin Configuration : Outward-Facing Pins, Standard Type

Maximum Breaker-Hole Spacing : 11 mm

Lock Body Material : Glass-Fiber-Reinforced PA Nylon

Lock Body Dimensions : 43 x 24 x 18 mm (H x W x D)

Color : Red and Black

Maximum Padlock Shackle Diameter : 7 mm

Installation : Tool-Free Push-Button Installation

⚠️ This product requires a lead time of 2-5 weeks before shipment.
