LDC11 - PIS Miniature Circuit Breaker Lockout

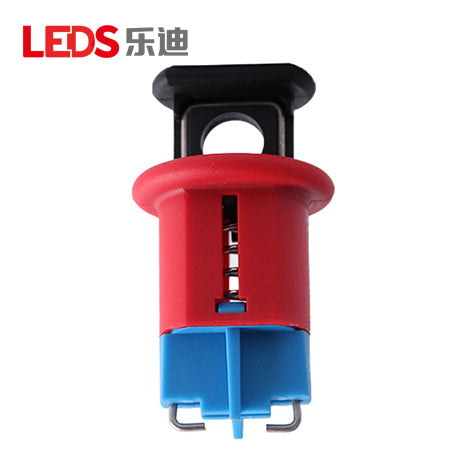

The LEDS LDC11 is a pin-in standard (PIS) miniature circuit breaker lockout designed for single-pole and multi-pole miniature circuit breakers with two side holes. Its inward-facing pins fit breaker-hole spacing of up to 13 mm. The compact lockout installs without tools by using the push-button mechanism, helping secure the breaker against unintended operation during electrical isolation, inspection, or maintenance. The body is made from glass-fiber-reinforced PA nylon for a lightweight and durable construction. Once installed, the device can be secured with a safety padlock having a shackle diameter of up to 7 mm.

Specifications

Model : LDC11

Type : Pin-In Standard (PIS) Miniature Circuit Breaker Lockout

Application : Single-Pole and Multi-Pole Miniature Circuit Breakers

Breaker Requirement : Two Side Holes

Pin Configuration : Inward-Facing Pins, Standard Type

Maximum Breaker-Hole Spacing : 13 mm

Lock Body Material : Glass-Fiber-Reinforced PA Nylon

Lock Body Dimensions : 43 x 24 x 18 mm (H x W x D)

Color : Red and Blue

Maximum Padlock Shackle Diameter : 7 mm

Installation : Tool-Free Push-Button Installation

⚠️ This product requires a lead time of 2-5 weeks before shipment.
