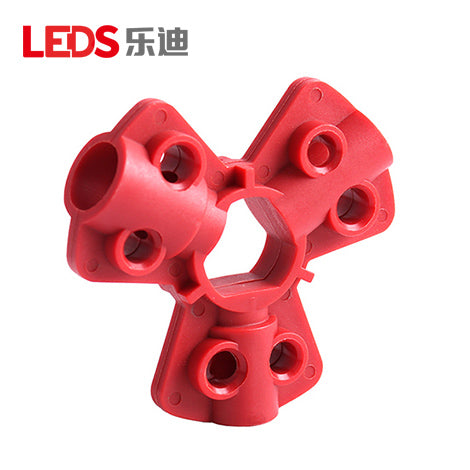

LDA11 - Pneumatic Quick-Disconnect Lockout

The LEDS LDA11 is a pneumatic quick-disconnect lockout designed to isolate equipment from compressed-air sources without the cost or inconvenience of installing an in-line shutoff valve. The impact-resistant lock body is molded from engineering-plastic nylon PA and connects to male pneumatic fittings. It is suitable for most 6.4 mm, 9.5 mm, and 12.7 mm male threaded fittings and can be secured with a padlock having a 6.4 mm (1/4 in) or 7.1 mm (9/32 in) shackle diameter.

Specifications

Model : LDA11

Type : Pneumatic Quick-Disconnect Lockout

Material : Impact-Resistant Engineering-Plastic Nylon PA

Compatible Male Threaded Fittings : Most 6.4 / 9.5 / 12.7 mm Fittings

Catalog Opening Diameters : 7 / 11 / 12.5 / 15 mm

Catalog Center Opening : 20 mm

Compatible Padlock Shackle Diameter : 6.4 mm (1/4 in) or 7.1 mm (9/32 in)

Application : Isolation of Equipment from Compressed-Air Sources

⚠️ This product requires a lead time of 2-5 weeks before shipment.
