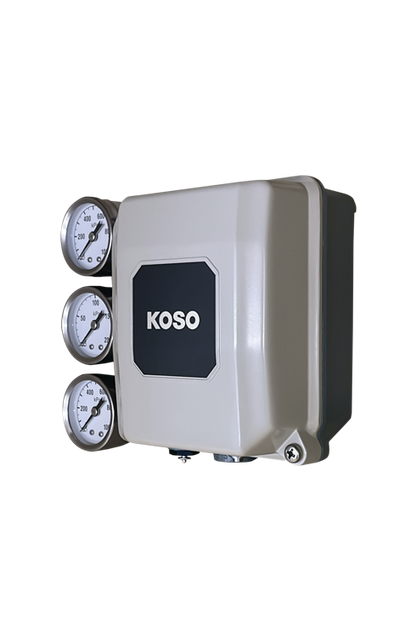

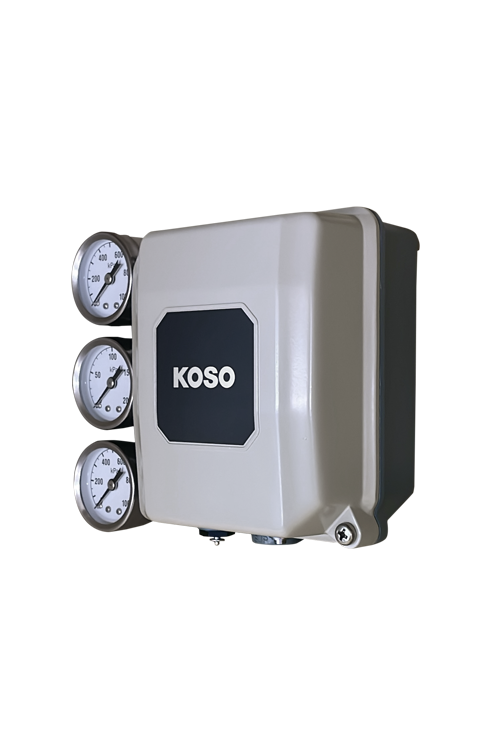

KOSO PPA801-L4

The KOSO PPA801-L4 is a pneumatic-pneumatic positioner in the PP800 Series, designed for Spring Return Type actuators. It features a Weatherproof enclosure, Linear Feedback, Linear Cam Characteristic, and a 400 kPa pressure gauge. The positioner receives a 20–100 kPa pneumatic input signal and provides precise pneumatic positioning with excellent stability and repeatability, making it suitable for a wide range of industrial process control applications.

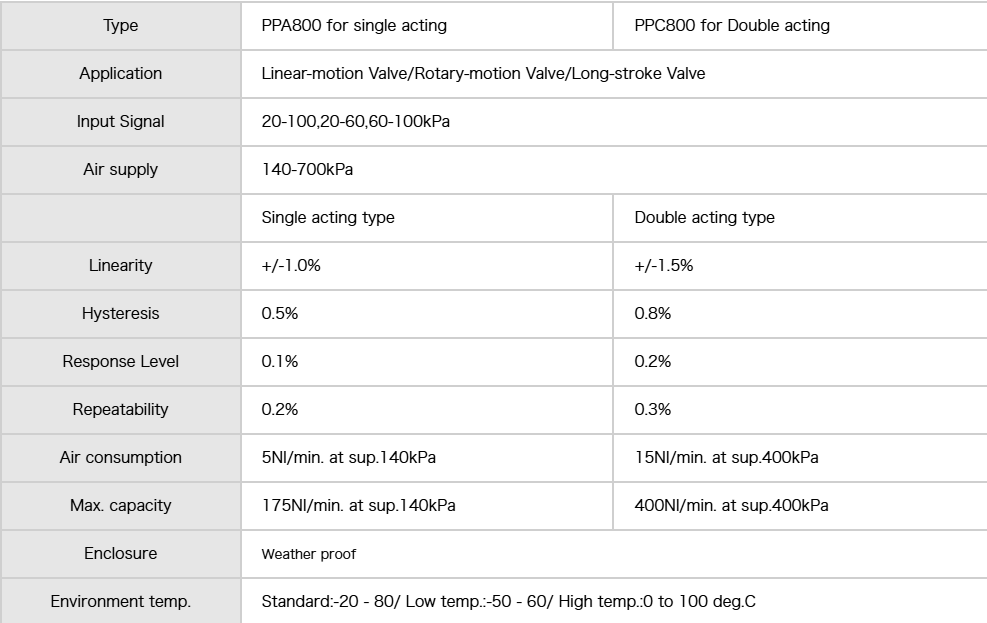

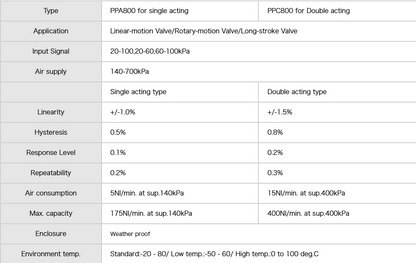

Specifications

Series : PP800

Model : PPA801-L4

Type : For spring return type

Enclosure : Weather proof type

Feedback style : Linear (Feedback for standard lever)

Cam Characteristic : Linear

Pressure Gauge : 400 kPa

Input Signal : 20–100 kPa Pneumatic Signal

Supply Air Pressure : 140–700 kPa

Downloads

📄 Download Product Catalog (PDF)

⚠️ This product requires a lead time of 2–5 weeks before shipment.
