KOSO EPC804-L10

The KOSO EPC804-L10 is an electro-pneumatic positioner in the EP800 Series, designed for Double acting type. It features a Weatherproof enclosure, Linear Feedback, Linear Cam Characteristic, and a 1000 kPa pressure gauge. The positioner converts a 4–20 mA DC input signal into a proportional pneumatic output, delivering stable and accurate valve positioning for industrial process control.

Specifications

Series : EP800

Model : EPC804-L10

Type : For double acting type

Enclosure : Weather proof type

Feedback style : Rotary (for 6300RA,6500RA,7300RA)

Cam Characteristic : Linear

Pressure Gauge : 1000 kPa

Input Signal : 4–20 mA DC

Supply Air Pressure : 140–700 kPa

Downloads

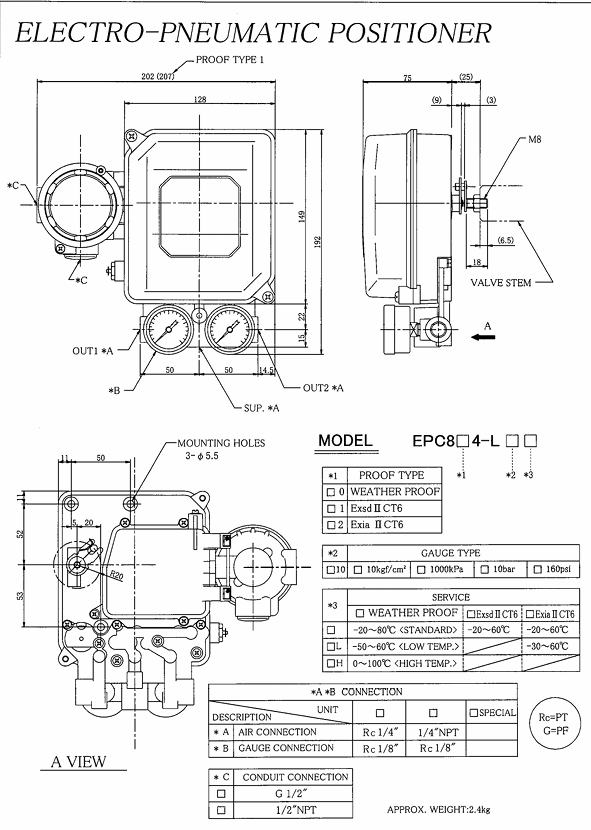

📄 Download Product Catalog (PDF)

⚠️ This product requires a lead time of 2–5 weeks before shipment.
