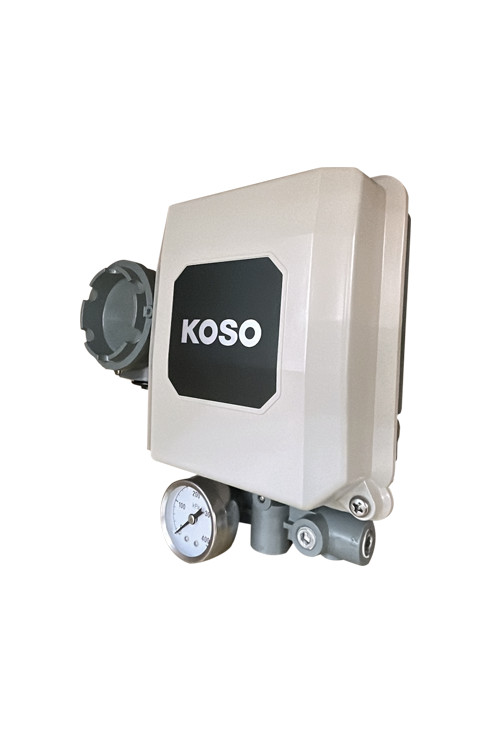

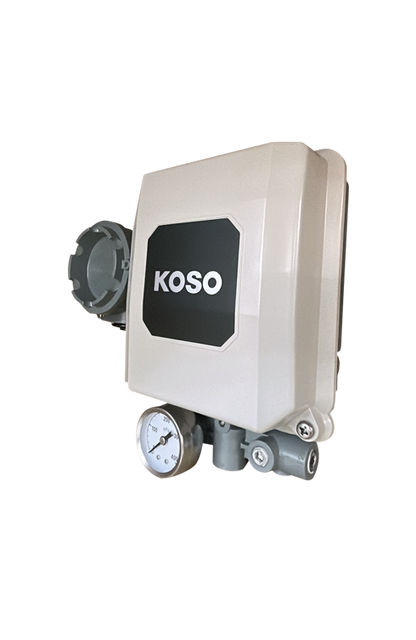

KOSO EPA811-L2

The KOSO EPA811-L2 is an electro-pneumatic positioner in the EP800 Series, designed for Spring Return Type actuators. It features an Explosion Proof enclosure, Linear Feedback, Linear Cam Characteristic, and a 200 kPa pressure gauge. The positioner converts a 4–20 mA DC input signal into a proportional pneumatic output, delivering stable and accurate valve positioning for industrial process control.

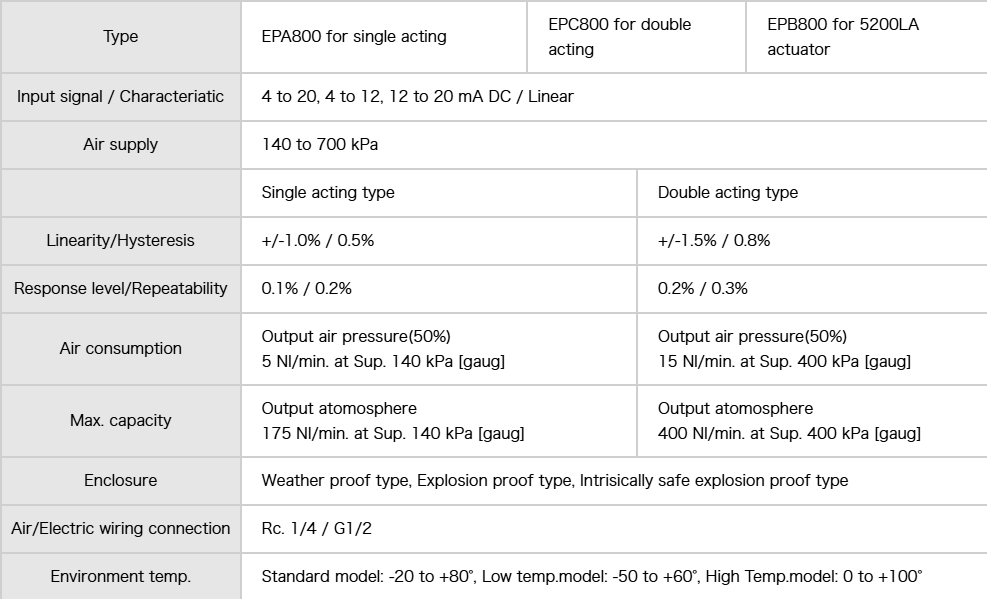

Specifications

Series : EP800

Model : EPA811-L2

Type : For spring return type

Enclosure : Explosion proof type

Feedback style : Linear (Feedback for standard lever)

Cam Characteristic : Linear

Pressure Gauge : 200 kPa

Input Signal : 4–20 mA DC

Supply Air Pressure : 140–700 kPa

Downloads

📄 Download Product Catalog (PDF)

⚠️ This product requires a lead time of 2–5 weeks before shipment.
