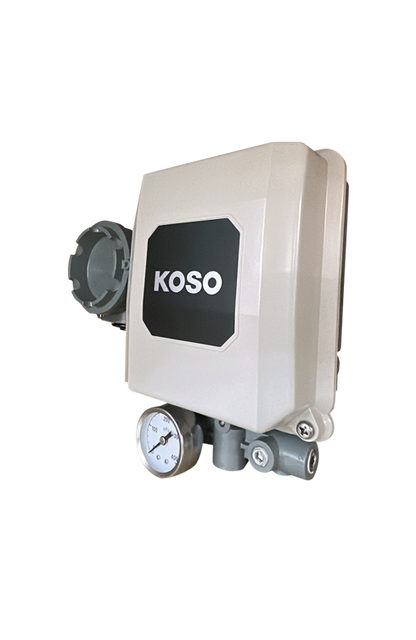

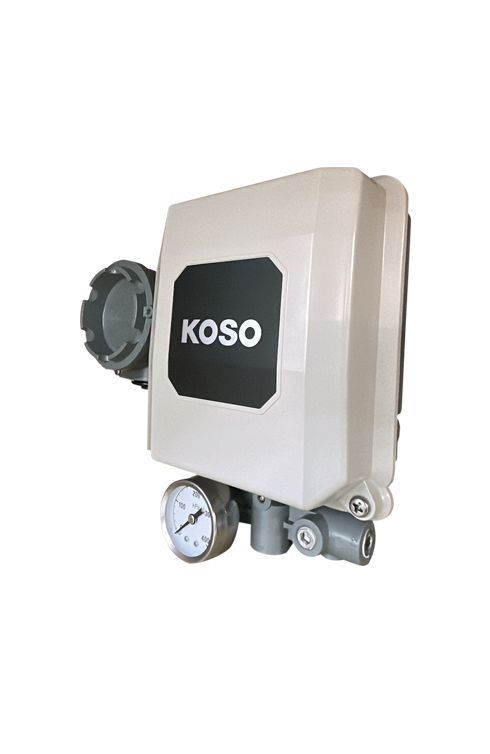

KOSO EPA804-L4

The KOSO EPA804-L4 is an electro-pneumatic positioner in the EP800 Series, designed for Spring Return Type actuators. It features a Weatherproof enclosure, Linear Feedback, Linear Cam Characteristic, and a 400 kPa pressure gauge. The positioner converts a 4–20 mA DC input signal into a proportional pneumatic output, delivering stable and accurate valve positioning for industrial process control.

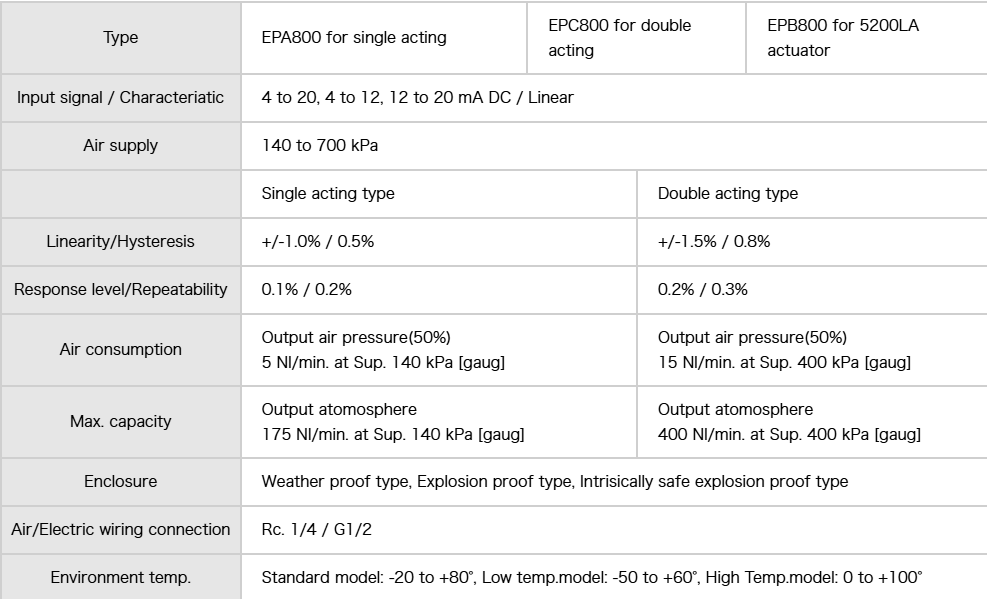

Specifications

Series : EP800

Model : EPA804-L4

Type : For spring return type

Enclosure : Weather proof type

Feedback style : Rotary (for6300RA,6500RA,7300RA)

Cam Characteristic : Linear

Pressure Gauge : 400 kPa

Input Signal : 4–20 mA DC

Supply Air Pressure : 140–700 kPa

Downloads

📄 Download Product Catalog (PDF)

⚠️ This product requires a lead time of 2–5 weeks before shipment.
